7 RAYONE
INJECTOR

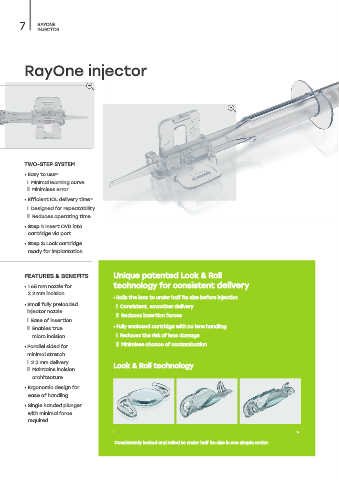

RayOne injector

TWO-STEP SYSTEM

• Easy to use 10
i. Minimal learning curve
ii. Minimises error
• Efficient IOL delivery time 10
i
. Designed for repeatability
ii. Reduces operating time
• Step 1: Insert OVD into
cartridge via port
• Step 2: Lock cartridge
ready for implantation

FEATURES & BENEFITS Unique patented Lock & Roll
• 1.65 mm nozzle for technology for consistent delivery
2.2 mm incision
• Rolls the lens to under half its size before injection
• Small fully preloaded i. Consistent, smoother delivery
injector nozzle
ii. Reduces insertion forces
i. Ease of insertion
ii. Enables true • Fully enclosed cartridge with no lens handling
micro incision i. Reduces the risk of lens damage
• Parallel sided for ii. Minimises chance of contamination
minimal stretch
i. 2.2 mm delivery Lock & Roll technology
ii. Maintains incision
architecture
• Ergonomic design for
ease of handling
• Single handed plunger
with minimal force
required

Consistently locked and rolled to under half its size in one simple action
