3 CLINICAL
RESULTS

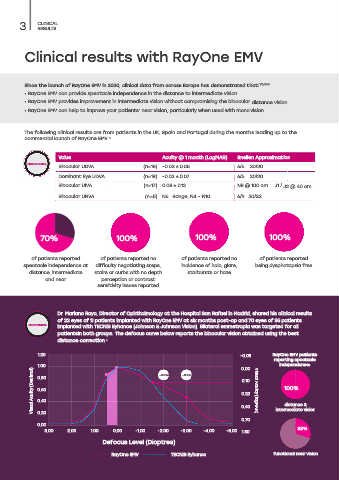

Clinical results with RayOne EMV
Since the launch of RayOne EMV in 2020, clinical data from across Europe has demonstrated that: 1,2,3,6,7
• RayOne EMV can provide spectacle independence in the distance to intermediate vision.
• RayOne EMV provides improvement in intermediate vision without compromising the binocular distance vision.
• RayOne EMV can help to improve your patients’ near vision, particularly when used with monovision.
The following clinical results are from patients in the UK, Spain and Portugal during the months leading up to the
commercial launch of RayOne EMV. 2
Value Acuity @ 1 month (LogMAR) Snellen Approximation
MONOVISION
Binocular UDVA (n=18) -0.03 ± 0.05 6/6 20/20
Dominant Eye UDVA (n=18) -0.02 ± 0.07 6/6 20/20
Binocular UIVA (n=17) 0.08 ± 0.12 N8 @ 100 cm J1 / J2 @ 40 cm
Binocular UNVA (n=5) N6 Range, N4 – N10 6/9 20/32
70% 100% 100% 100%
of patients reported of patients reported no of patients reported no of patients reported
spectacle independence at difficulty negotiating steps, incidence of halo, glare, being dysphotopsia free
distance, intermediate stairs or curbs with no depth starbursts or haze
and near perception or contrast
sensitivity issues reported
Dr. Mariano Royo, Director of Ophthalmology at the Hospital San Rafael in Madrid, shared his clinical results
of 22 eyes of 11 patients implanted with RayOne EMV at six months post-op and 70 eyes of 35 patients
EMMETROPIA
implanted with TECNIS Eyhance (Johnson & Johnson Vision). Bilateral emmetropia was targeted for all
patientsin both groups. The defocus curve below reports the binocular vision obtained using the best
RayOne EMV - TECNIS Eyhance
distance correction. 6
1.20 -0.08 RayOne EMV patients
reporting spectacle
1.00 ~50cm ~33cm 0.00 independence:
Visual Acuity (Decimal) 0.60 0.22 Visual Acuity (logMAR) distance &
0.80
0.10
100%
0.40
0.40
0.20
0.70 intermediate vision
0.00
3.00 2.00 1.00 0.00 -1.00 -2.00 -3.00 -4.00 -5.00 1.30 33%
Defocus Level (Dioptres)
RayOne EMV TECNIS Eyhance functional near vision
